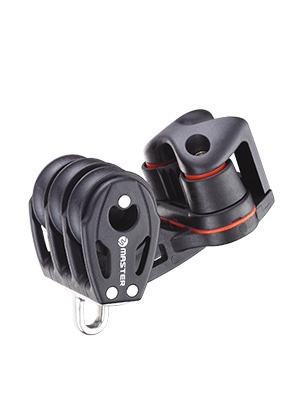

29mm Triple, Angle Fairlead Cleat Block

item NO.:BB-0212FE
  • Windrider Ball Bearing Blocks

    Master Windrider blocks are engineered for competitive sailing. The high strength composite sideplates are to provide top performance of working loads. The excellent weather-ability protects blocks from breaking down for any sailing conditions. Available in comprehensive range of sizes for different rope diameters and configurations. Master blocks are beautiful in design, but simple in use.


    29mm Triple, Angle Fairlead Cam Cleat Block
    BB-0212FE
    USD$ 99.73


    MATERIALS
    • Sheave: self-lubricant acetal composite
    • Ball Bearing: self-lubricant acetal composite
    • Sideplates/frames: reinforced glass fiber Nylon composite with UV stablized
    • Shackle: Forged  Grade 316 stainless steel

    APPLICATIONS
    • Mainsheet system, jib and spinnaker sheets on dinghies to 5m(16ft)
    • Halyard, vang and backstay on boats to 8m (26ft)
    • Control lines on boats of all sizes
    Do not use Master  products for human suspension!





  • SPECS

    Sheave Ø (mm) 29 mm Sheave Ø (in) 1 1/8 in
    Maximum line Ø (mm) 8 mm Maximum line Ø (in) 5/18 in
    Weight (g) 97 g Weight (oz) 3.42 oz
    Maximum working load (kg) 480 kg Maximum working load (lb) 1059 lb
    Maximum breaking load (kg) 960 kg Maximum breaking load (lb) 2217 lb
