16mm Stand-up Block

item NO.:SB-1615F
  • Dinghy Blocks

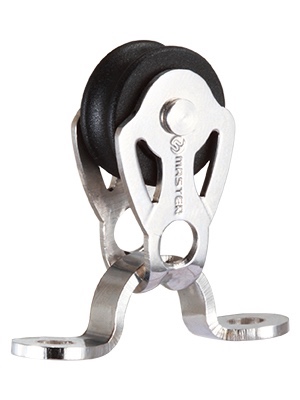

    Master's smallest block is perfect for control lines on dinghies. 16mm Stainless steel blocks feature contained stainless steel ball bearing system for smooth rotation. Sideplate is 316 stainless steel for long-term durability and maximum working load.


    16mm Stand up Block
    SB-1615F
    USD$ 22.01


    MATERIALS
    • Sheave: self-lubricant acetal composite
    • Ball Bearing: self-lubricant acetal composite
    • Sideplates/frames: reinforced glass fiber Nylon composite with UV stablized
    • Shackle: Forged  Grade 316 stainless steel

    APPLICATIONS
    • Mainsheet system, jib and spinnaker sheets on dinghies to 5m(16ft)
    • Halyard, vang and backstay on boats to 8m (26ft)
    • Control lines on boats of all sizes
    Do not use Master  products for human suspension!




  • SPECS

    Sheave Ø (mm) 16 mm Sheave Ø (in.) 7/8 in
    Maximum line Ø (mm) 6 mm Maximum line Ø (in.) 1/4 in
    Weight (g) 10 g Weight (oz.) 0.35 oz
    Maximum working load (kg.) 120 kg Maximum working load (lb.) 265 lb
    Maximum breaking load (kg.) 550 kg Maximum breaking load (lb.) 1213 lb
