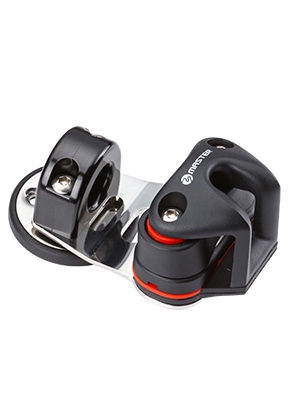

Medium Cam Base, Swivel Bullseye, Medium Angle Fairlead Cam Cleat

item NO.:CB-1002FE
  • Cam Cleat Bases

    Composite cam cleats features Self-lubricant ball bearing and non-abrasive jaws reducing friction and allowing sailors to engage and release loads instantly. Two sizes in lightweight, wear-resistant, and strong strength UV-stabilized glass fiber reinforced European composite. The plate is 316  stainless steel.

    Use small cam cleat bases for main and jib sheets on small boats or controling lines.

    Medium Cam Base, Swivel Bullseye, Medium Angle Fairlead Cam Cleat
    CB-1002FE



    MATERIALS
    • Swivel Base: 316 Stainless steel
    • Cam Cleat Base: Fiber reinforced plastic
    • Angle Fairlead: Fiber reinforced plastic
    • Ball Bearing: self-lubricant acetal composite
    • Spring: Grade 316 stainless steel
    • Pawls: Fiber reinforced plastic
    Do not use TERSMA  products for human suspension!
  • SPECS

    Maximum line Ø (mm) 3~12 mm Maximum line Ø (in) 1/8~1/2 in
    Fasten spacing (mm) 26 mm Fasten spacing (in) 1 1/32 in
    Fasteners (mm) 5 FH mm Fasteners (in) #10 FH in
    Weight (g) 196 g Weight (oz) 6.91 oz
    Maximum working load (kg.) 100 kg Maximum working load (lb) 221 lb
    Maximum breaking load (kg.) 200 kg Maximum breaking load (lb) 442 lb
