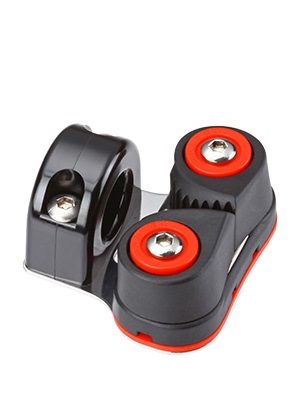

Medium Composite Cam Cleat, Bulleye, Stainless Steel Plate
item NO.：CB-1003F-
Stainless Steel Plate Composite Cam Cleats
Composite cam cleats features Self-lubricant ball bearing and non-abrasive jaws reducing friction and allowing sailors to engage and release loads instantly. Two sizes in lightweight, wear-resistant, and strong strength UV-stabilized glass fiber reinforced composite. The plate is 316 stainless steel.
Stainless Steel Plate Composite Cam Cleat
CB-1003F
$
MATERIALS- Base: UV-stabilized glass fiber reinforced Nylon composite
- Ball Bearing: self-lubricant acetal composite
- Spring: Grade 316 stainless steel
- Plate: Grade 316 stainless steel
Do not use Master products for human suspension! -
SPECS
Height (mm) 30mm Height (in) 1 3/16 in Width (mm) 32 mm Width (in) 1 1/4 in Maximum line Ø (mm) 3~12 mm Maximum line Ø (in) 1/8~1/2 in Fasten spacing (mm) 38 mm Fasten spacing (in) 1 1/2 in Fasteners (mm) 5 FH mm Fasteners (in) #5 FH in Weight (g) 100 g Weight (oz) 3.53 oz Maximum working load (kg) 100 kg Maximum working load (lb) 221 lb Maximum breaking load (kg.) 200 kg Maximum breaking load (lb) 442 lb -
